MLU Switch

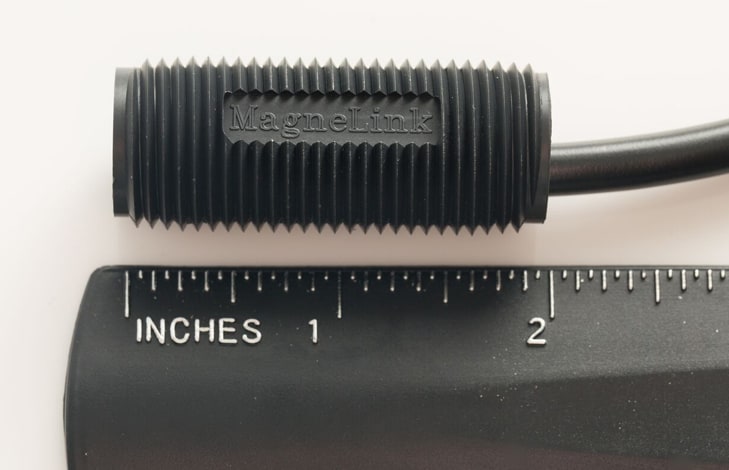

mlu_switch_only

Uses 1/2 inch electrical conduit pipe threads. It's a good fit for flush mount installations. Can be used as a proximity switch. Can be built with Reed, Triac or Transistor sub switch design.

Need something a little different?

MagneLink also does custom designs. Please contact us with your switch needs, and we'll help find the right switch solution for your application.

Reed Switches (Light Loads: Works in either AC or DC Voltage Circuits)

Part NumberContact StyleAbs. Max Power (VA)Typ. Voltage (V)Typ. Current (A)# of Leads
MLU-ExxSPDT100 120 VAC/ 28 VDC0.84A/ 3A 3
MLU-FxxSPST/NC 100120AC/ 28 DC0.84A / 3A2
MLU-Hxx SPST/NO100120AC/ 28 DC0.84A / 3A2
MLU-LxxSPST/NO50125 AC/DC1.02

Note: 'xx' in the part number indicates the length in feet of the cable

Triac Switches (Works in AC Voltage Circuits: Heavy and/or Inductive Loads)

Part NumberContact StyleMax Voltage (V) Typ. Current (A) # of Leads
MLU-PxxSPST/NO 230 AC22
MLU-Sxx SPST/NC 230 AC22
MLU-Pxx-S1SPST/NO230 AC22
MLU-Wxx-S1 SPDT 230 AC23

Note 1: Part numbers with the '-S' suffix use flexible stainless steel hose over the cable.
Note: 'xx' in the part number indicates the length in feet of the cable

Transistor Switches (Works in DC Voltage Circuits: Heavy and/or Inductive Loads)

Part NumberContact StyleTyp. Voltage (V) Typ. Current (A) # of Leads
MLU-Txx SPST/NO 125 DC22
MLU-Txx-S1SPST/NO125 DC22
MLU-Xxx SPST/NC 125 DC22
MLU-Yxx SPDT 125 DC23

Note 1: Part numbers with the '-S' suffix use flexible stainless steel hose over the cable.
Note: 'xx' in the part number indicates the length in feet of the cable
