MLM Switch

MLM

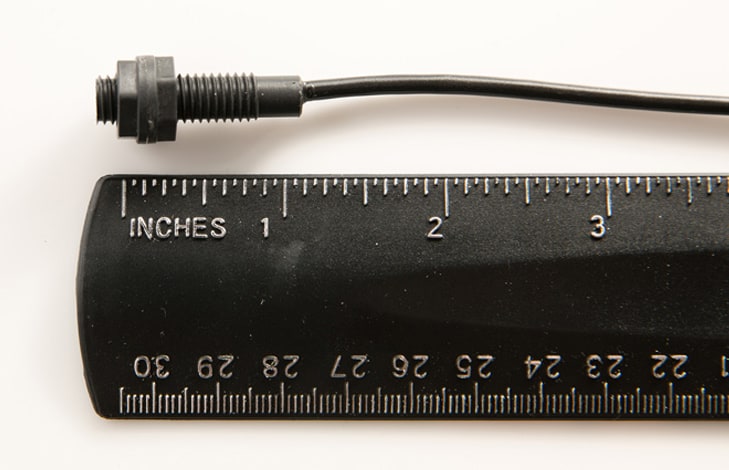

Threaded 8mm diameter glass-filled nylon housing with jam nuts. Compact design for flush mount installations.

mlm_2.25

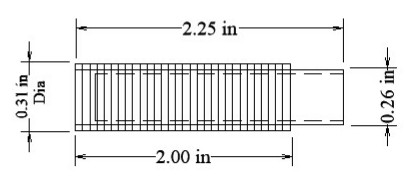

Note: Add –E to the suffix of the part number to indicate use of the 2 1/4 inch long version of the MLM housing

Need something a little different?

MagneLink also does custom designs. Please contact us with your switch needs, and we'll help find the right switch solution for your application.

Reed Switches

Part NumberContact StyleAbs. Max Power (VA)Typ. Volt. (V) Typ. Curr. (A) # of Leads
MLM-Cxx NC SPST 3125 AC/DC0.2502
MLM-ExxSPDT3125 AC/DC0.2503
MLM-Lxx NO SPST50125 AC/DC1.02

Hall Effect Switches

Part NumberContact StyleTyp. Voltage (V) Max Current (A) # of Leads
MLM-Hxx NO Sinking5-24 VDC0.0133

Note: 'xx' in the part number indicates the length in feet of the cable
